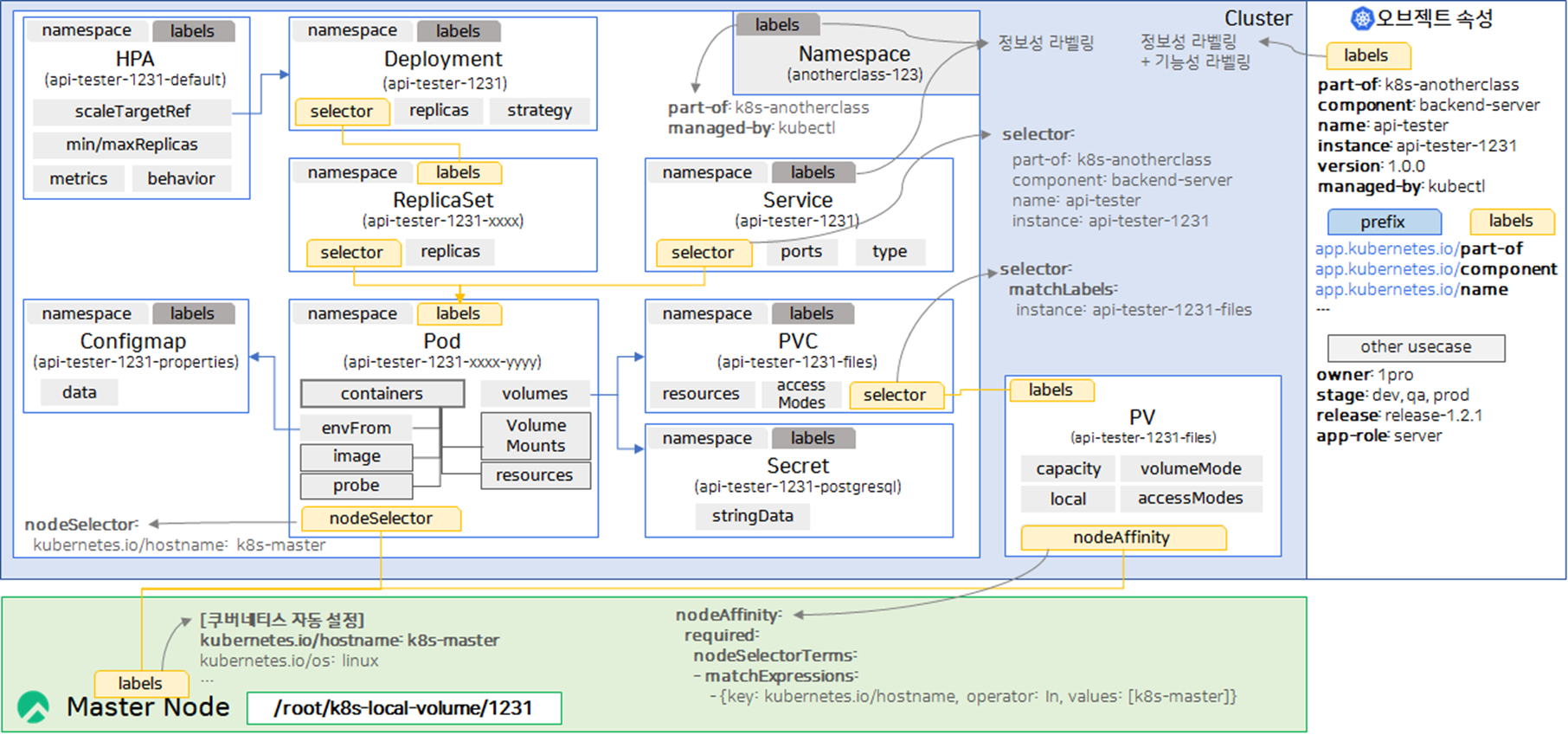

apiVersion: v1
kind: Namespace
metadata:
  name: anotherclass-123
  labels:
    part-of: k8s-anotherclass
    managed-by: dashboard
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: api-tester-1231-files
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231-files
    version: 1.0.0
    managed-by: dashboard
spec:
  capacity:
    storage: 2G
  volumeMode: Filesystem
  accessModes:
    - ReadWriteMany
  local:
    path: "/root/k8s-local-volume/1231"
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - {key: kubernetes.io/hostname, operator: In, values: [k8s-master]}
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  namespace: anotherclass-123
  name: api-tester-1231-files
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: kubectl
spec:
  resources:
    requests:
      storage: 2G
  accessModes:
    - ReadWriteMany
  selector:
    matchLabels:
      part-of: k8s-anotherclass
      component: backend-server
      name: api-tester
      instance: api-tester-1231-files
---
apiVersion: v1
kind: ConfigMap
metadata:
  namespace: anotherclass-123
  name: api-tester-1231-properties
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: dashboard
data:
  spring_profiles_active: "dev"
  application_role: "ALL"
  postgresql_filepath: "/usr/src/myapp/datasource/postgresql-info.yaml"
---
apiVersion: v1
kind: Secret
metadata:
  namespace: anotherclass-123
  name: api-tester-1231-postgresql
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: dashboard
stringData:
  postgresql-info.yaml: |
    driver-class-name: "org.postgresql.Driver"
    url: "jdbc:postgresql://postgresql:5431"
    username: "dev"
    password: "dev123"
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: anotherclass-123
  name: api-tester-1231
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: dashboard
spec:
  selector:
    matchLabels:
      part-of: k8s-anotherclass
      component: backend-server
      name: api-tester
      instance: api-tester-1231
  replicas: 2
  strategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        part-of: k8s-anotherclass
        component: backend-server
        name: api-tester
        instance: api-tester-1231
        version: 1.0.0
    spec:
      nodeSelector:
        kubernetes.io/hostname: k8s-master
      containers:
        - name: api-tester-1231
          image: 1pro/api-tester:v1.0.0
          ports:
          - name: http
            containerPort: 8080
          envFrom:
            - configMapRef:
                name: api-tester-1231-properties
          startupProbe:
            httpGet:
              path: "/startup"
              port: 8080
            periodSeconds: 5
            failureThreshold: 36
          readinessProbe:
            httpGet:
              path: "/readiness"
              port: 8080
            periodSeconds: 10
            failureThreshold: 3
          livenessProbe:
            httpGet:
              path: "/liveness"
              port: 8080
            periodSeconds: 10
            failureThreshold: 3
          resources:
            requests:
              memory: "100Mi"
              cpu: "100m"
            limits:
              memory: "200Mi"
              cpu: "200m"
          volumeMounts:
            - name: files
              mountPath: /usr/src/myapp/files/dev
            - name: secret-datasource
              mountPath: /usr/src/myapp/datasource
      volumes:
        - name: files
          persistentVolumeClaim:
            claimName: api-tester-1231-files
        - name: secret-datasource
          secret:
            secretName: api-tester-1231-postgresql
---
apiVersion: v1
kind: Service
metadata:
  namespace: anotherclass-123
  name: api-tester-1231
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: dashboard
spec:
  selector:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
  ports:
    - port: 80
      targetPort: http
      nodePort: 31231
  type: NodePort
---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  namespace: anotherclass-123
  name: api-tester-1231-default
  labels:
    part-of: k8s-anotherclass
    component: backend-server
    name: api-tester
    instance: api-tester-1231
    version: 1.0.0
    managed-by: dashboard
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: api-tester-1231
  minReplicas: 2
  maxReplicas: 4
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 60
  behavior:
    scaleUp:
      stabilizationWindowSeconds: 120

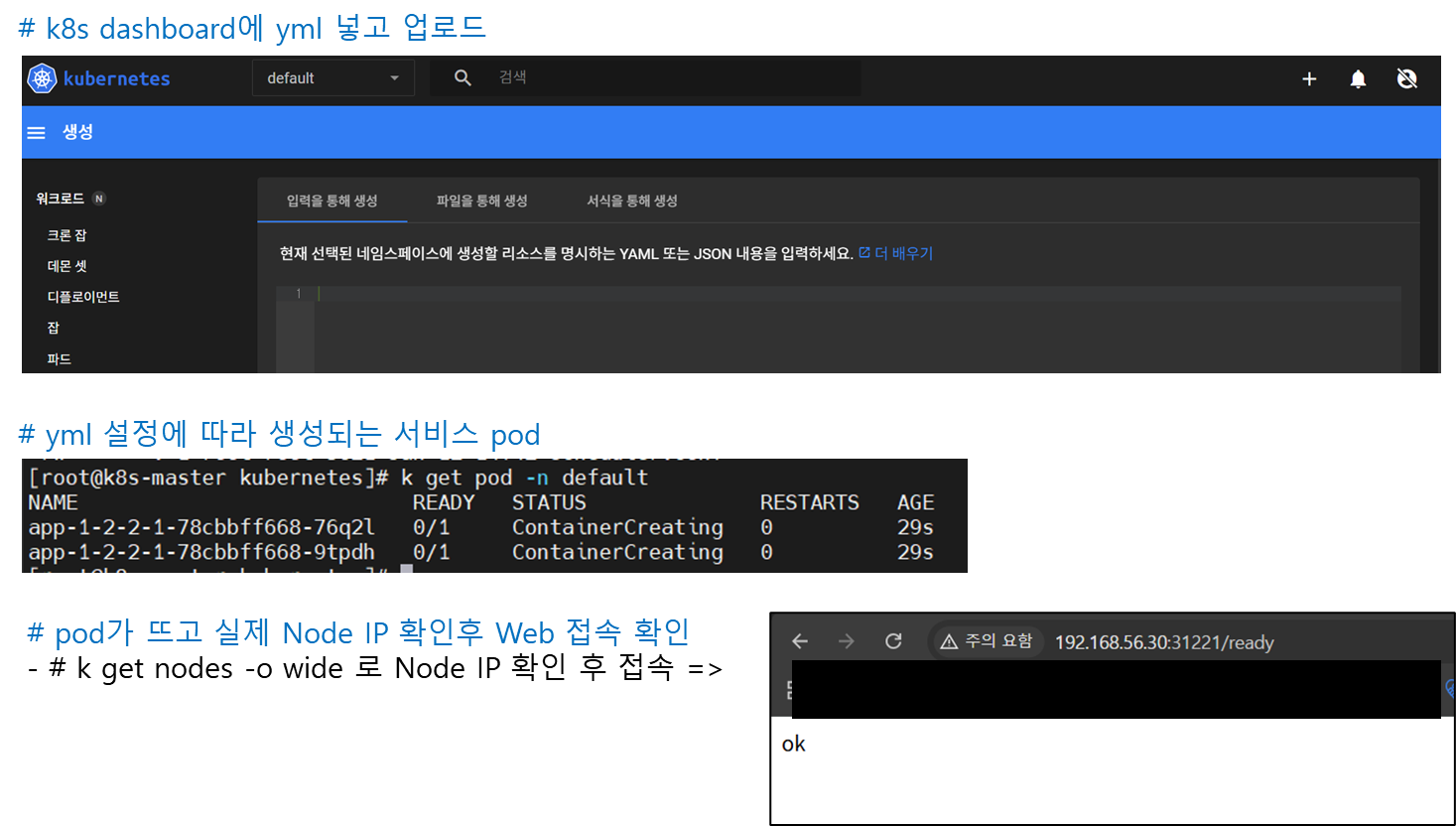

apiVersion: apps/v1
kind: Deployment
metadata:
  name: app-1-2-2-1
spec:
  selector:
    matchLabels:
      app: '1.2.2.1'
  replicas: 2
  strategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: '1.2.2.1'
    spec:
      containers:
        - name: app-1-2-2-1
          image: 1pro/app
          imagePullPolicy: Always
          ports:
            - name: http
              containerPort: 8080
          startupProbe:
            httpGet:
              path: "/ready"
              port: http
            failureThreshold: 20
          livenessProbe:
            httpGet:
              path: "/ready"
              port: http
          readinessProbe:
            httpGet:
              path: "/ready"
              port: http
          resources:
            requests:
              memory: "100Mi"
              cpu: "100m"
            limits:
              memory: "200Mi"
              cpu: "200m"
---

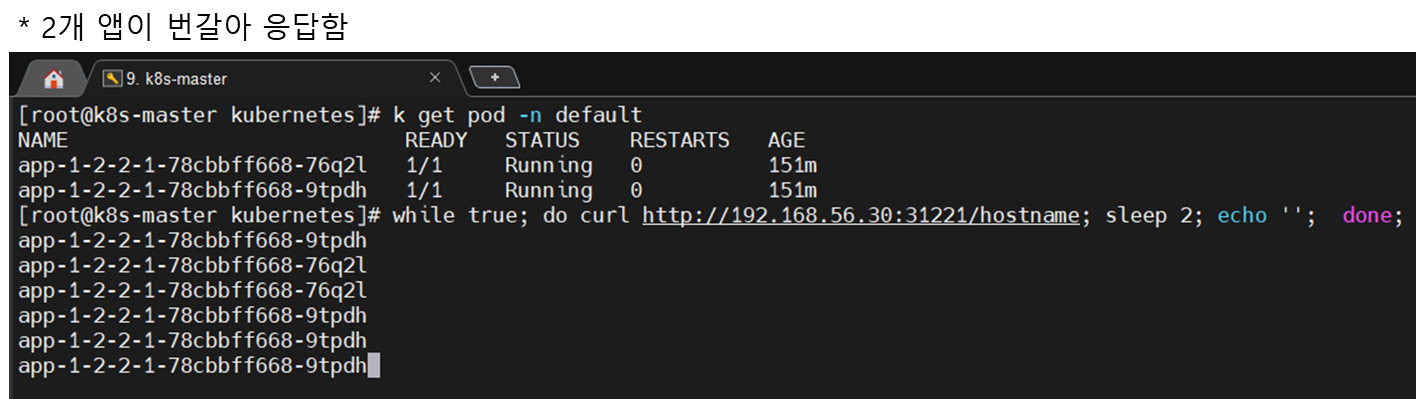

apiVersion: v1
kind: Service
metadata:
  name: app-1-2-2-1
spec:
  selector:
    app: '1.2.2.1'
  ports:
    - port: 8080
      targetPort: 8080
      nodePort: 31221
  type: NodePort
---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: app-1-2-2-1
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: app-1-2-2-1
  minReplicas: 2
  maxReplicas: 4
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 40

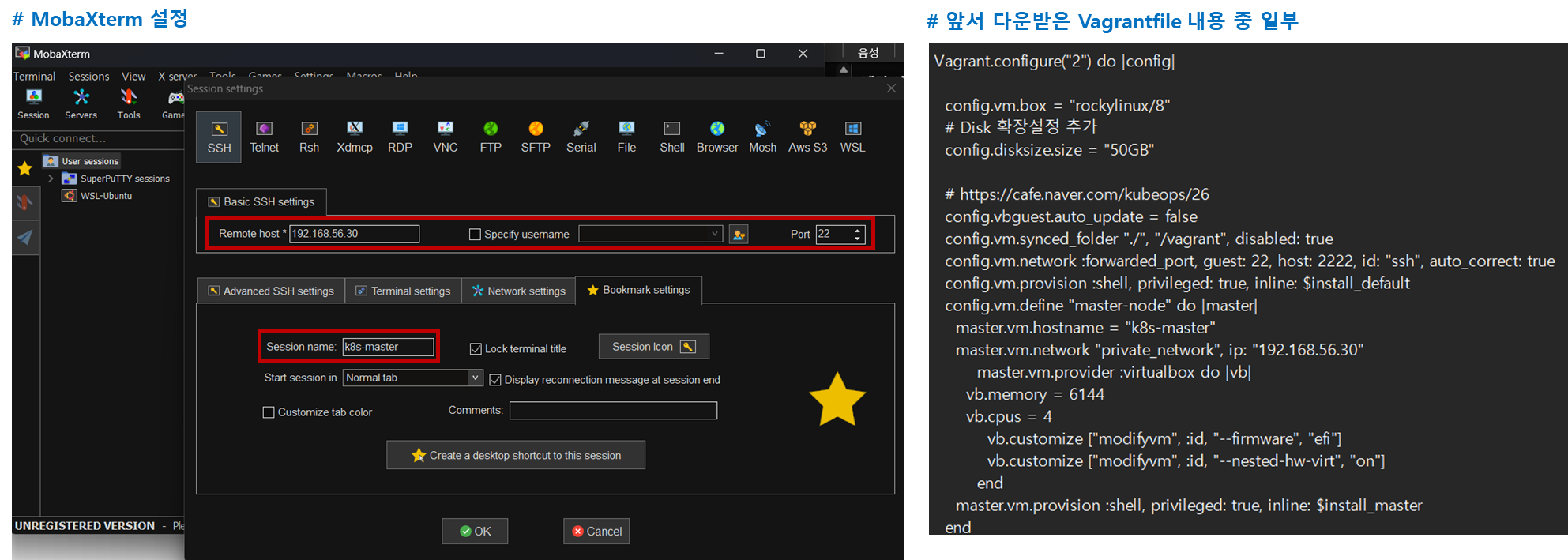

Vagrant.configure("2") do |config|

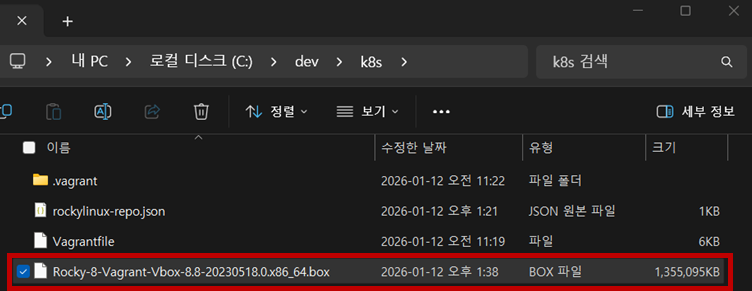

  config.vm.box = "rockylinux/8"
  # Disk 확장설정 추가
  config.disksize.size = "50GB"

  # https://cafe.naver.com/kubeops/26
  config.vbguest.auto_update = false
  config.vm.synced_folder "./", "/vagrant", disabled: true
  config.vm.network :forwarded_port, guest: 22, host: 2222, id: "ssh", auto_correct: true
  config.vm.provision :shell, privileged: true, inline: $install_default
  config.vm.define "master-node" do |master|
    master.vm.hostname = "k8s-master"
    master.vm.network "private_network", ip: "192.168.56.30"
master.vm.provider :virtualbox do |vb|
      #vb.memory = 6144
      vb.memory = 8192 # 소영 추가 : Prometheus/Loki 가동을 위한 최소 메모리 확보
      vb.cpus = 4
  vb.customize ["modifyvm", :id, "--firmware", "efi"]
  vb.customize ["modifyvm", :id, "--nested-hw-virt", "on"]
end
    master.vm.provision :shell, privileged: true, inline: $install_master
  end

end

$install_default = <<-SHELL

echo '======== [4] Rocky Linux 기본 설정 ========'
echo '======== [4-1] 패키지 업데이트 ========'
# 강의와 동일한 실습 환경을 유지하기 위해 Linux Update 주석 처리
# yum -y update

# 초기 root 비밀번호 변경을 원하시면 아래 주석을 풀고 [새로운비밀번호]에 비번을 입력해주세요
# echo "root:새로운비밀번호" | chpasswd


echo '======== [4-2] 타임존 설정 및 동기화========'
timedatectl set-timezone Asia/Seoul
timedatectl set-ntp true
chronyc makestep

echo '======== [4-3] Disk 확장 / Bug: soft lockup 설정 추가========'
# https://cafe.naver.com/kubeops/25
yum install -y cloud-utils-growpart
growpart /dev/sda 4
xfs_growfs /dev/sda4

echo '======== [4-4] [WARNING FileExisting-tc]: tc not found in system path 로그 관련 업데이트 ========'
yum install -y yum-utils iproute-tc

echo '======= [4-4] hosts 설정 =========='
cat << EOF >> /etc/hosts
192.168.56.30 k8s-master
EOF

echo '======== [5] kubeadm 설치 전 사전작업 ========'
echo '======== [5] 방화벽 해제 ========'
systemctl stop firewalld && systemctl disable firewalld

echo '======== [5] Swap 비활성화 ========'
swapoff -a && sed -i '/ swap / s/^/#/' /etc/fstab


echo '======== [6] 컨테이너 런타임 설치 ========'
echo '======== [6-1] 컨테이너 런타임 설치 전 사전작업 ========'
echo '======== [6-1] iptable 세팅 ========'
cat <<EOF |tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

modprobe overlay
modprobe br_netfilter

cat <<EOF |tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF

sysctl --system

echo '======== [6-2] 컨테이너 런타임 (containerd 설치) ========'
echo '======== [6-2-1] containerd 패키지 설치 (option2) ========'
echo '======== [6-2-1-1] docker engine 설치 ========'
echo '======== [6-2-1-1] repo 설정 ========'
yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo

echo '======== [6-2-1-1] containerd 설치 ========'
yum install -y containerd.io-1.6.21-3.1.el8
systemctl daemon-reload
systemctl enable --now containerd

echo '======== [6-3] 컨테이너 런타임 : cri 활성화 ========'
# defualt cgroupfs에서 systemd로 변경 (kubernetes default는 systemd)
containerd config default > /etc/containerd/config.toml
sed -i 's/ SystemdCgroup = false/ SystemdCgroup = true/' /etc/containerd/config.toml
systemctl restart containerd



echo '======== [7] kubeadm 설치 ========'
echo '======== [7] repo 설정 ========'
cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://pkgs.k8s.io/core:/stable:/v1.27/rpm/
enabled=1
gpgcheck=1
gpgkey=https://pkgs.k8s.io/core:/stable:/v1.27/rpm/repodata/repomd.xml.key
exclude=kubelet kubeadm kubectl cri-tools kubernetes-cni
EOF


echo '======== [7] SELinux 설정 ========'
setenforce 0
sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config

echo '======== [7] kubelet, kubeadm, kubectl 패키지 설치 ========'
yum install -y kubelet-1.27.2-150500.1.1.x86_64 kubeadm-1.27.2-150500.1.1.x86_64 kubectl-1.27.2-150500.1.1.x86_64 --disableexcludes=kubernetes
systemctl enable --now kubelet

SHELL



$install_master = <<-SHELL

echo '======== [8] kubeadm으로 클러스터 생성  ========'
echo '======== [8-1] 클러스터 초기화 (Pod Network 세팅) ========'
kubeadm init --pod-network-cidr=20.96.0.0/12 --apiserver-advertise-address 192.168.56.30

echo '======== [8-2] kubectl 사용 설정 ========'
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config

echo '======== [8-3] Pod Network 설치 (calico) ========'
kubectl create -f https://raw.githubusercontent.com/k8s-1pro/install/main/ground/k8s-1.27/calico-3.26.4/calico.yaml
kubectl create -f https://raw.githubusercontent.com/k8s-1pro/install/main/ground/k8s-1.27/calico-3.26.4/calico-custom.yaml

echo '======== [8-4] Master에 Pod를 생성 할수 있도록 설정 ========'
kubectl taint nodes k8s-master node-role.kubernetes.io/control-plane-


echo '======== [9] 쿠버네티스 편의기능 설치 ========'
echo '======== [9-1] kubectl 자동완성 기능 ========'
echo "source <(kubectl completion bash)" >> ~/.bashrc
echo 'alias k=kubectl' >>~/.bashrc
echo 'complete -o default -F __start_kubectl k' >>~/.bashrc

echo '======== [9-2] Dashboard 설치 ========'
kubectl create -f https://raw.githubusercontent.com/k8s-1pro/install/main/ground/k8s-1.27/dashboard-2.7.0/dashboard.yaml

echo '======== ***** 대시보드 외부 오픈 (custom) ***** ========'
sleep 10  # <--- [중요] 대시보드 API가 준비될 시간을 줍니다.
# [설정 1] NodePort 30000번으로 고정
kubectl patch svc kubernetes-dashboard -n kubernetes-dashboard -p '{"spec": {"type": "NodePort", "ports": [{"port": 443, "nodePort": 30000, "targetPort": 8443}]}}'

# [설정 2] 로그인 화면에서 Skip 버튼 활성화
kubectl patch deployment kubernetes-dashboard -n kubernetes-dashboard --type 'json' -p '[{"op": "add", "path": "/spec/template/spec/containers/0/args/-", "value": "--enable-skip-login"}]'

# [설정 3] Skip 버튼 클릭 시 관리자 권한 부여
kubectl create clusterrolebinding dashboard-skip-admin --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:kubernetes-dashboard

echo '======== ***** 대시보드 외부 오픈 (custom) 끝 ***** ========'

echo '======== [9-3] Metrics Server 설치 ========'
kubectl create -f https://raw.githubusercontent.com/k8s-1pro/install/main/ground/k8s-1.27/metrics-server-0.6.3/metrics-server.yaml

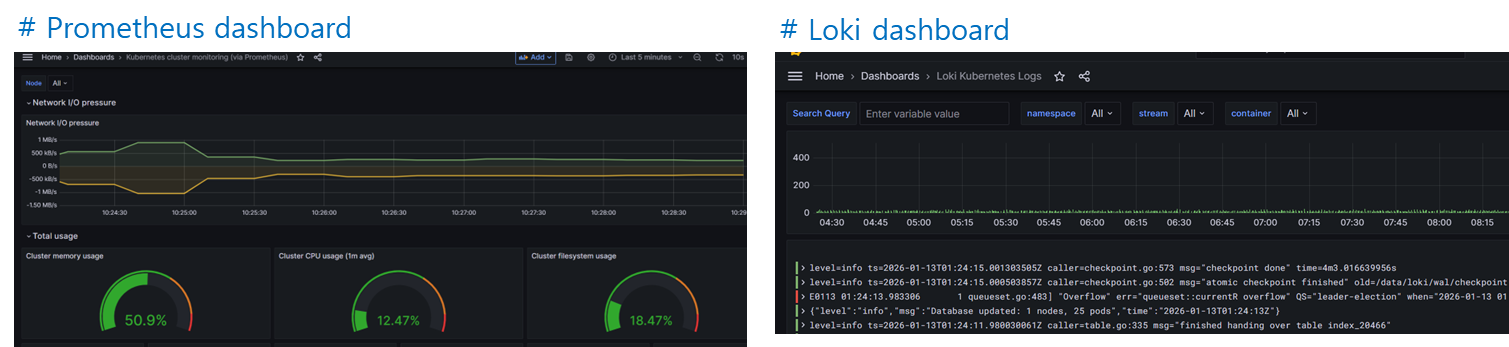

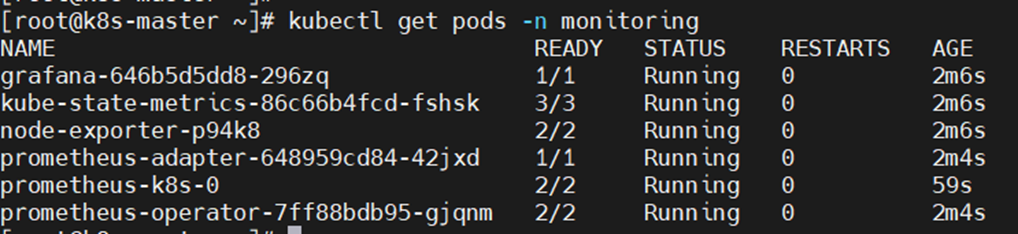

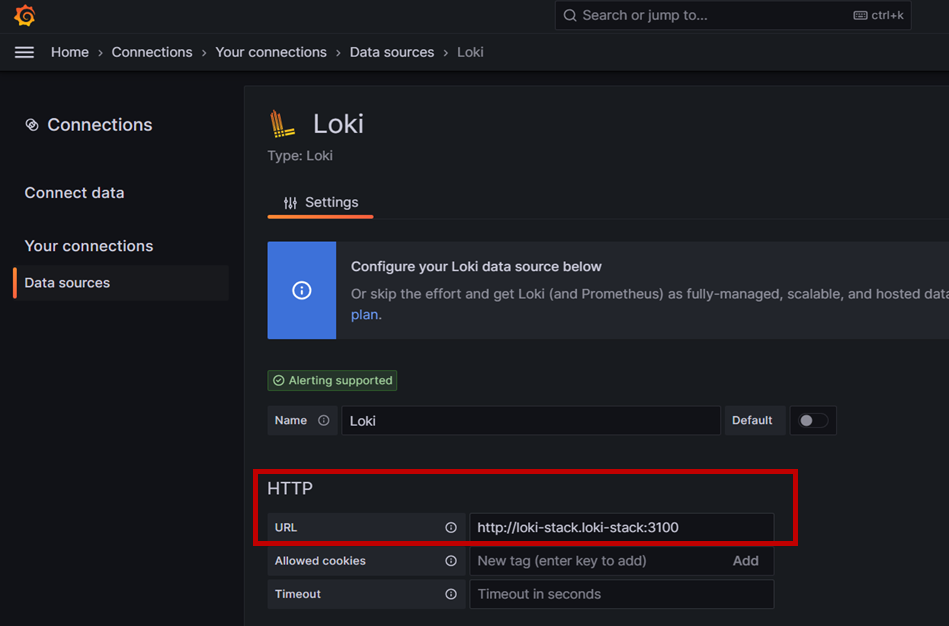

echo '======== [10] custom : 모니터링 (Prometheus & Loki) 설치 시작 ========'
# [10-1] Git 설치 및 레포지토리 구성
yum -y install git
cd $HOME
git init monitoring
cd monitoring
git remote add -f origin https://github.com/k8s-1pro/install.git
git config core.sparseCheckout true
echo "ground/k8s-1.27/prometheus-2.44.0" >> .git/info/sparse-checkout
echo "ground/k8s-1.27/loki-stack-2.6.1" >> .git/info/sparse-checkout
git pull origin main

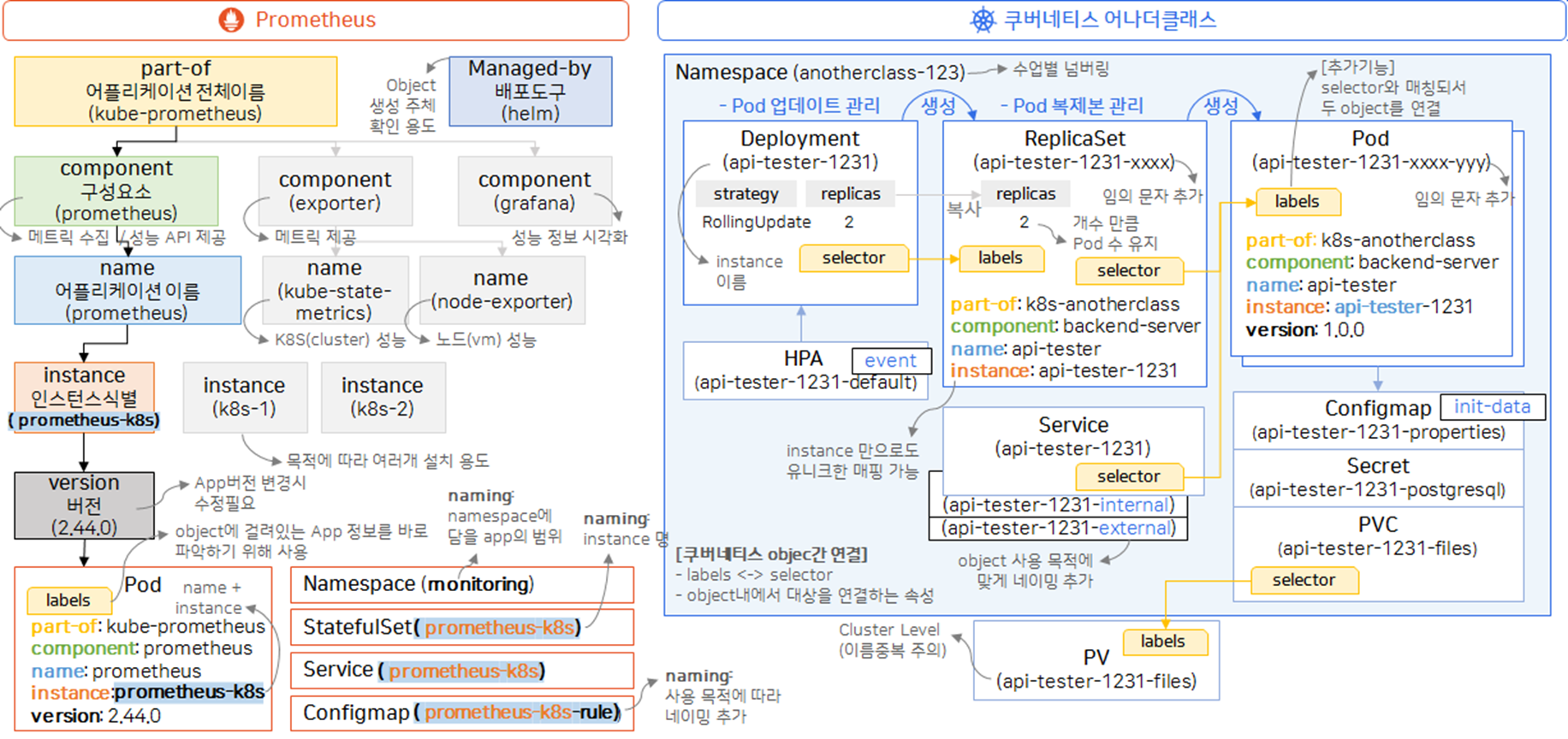

# [10-2] Prometheus & Grafana 설치
kubectl apply --server-side -f ground/k8s-1.27/prometheus-2.44.0/manifests/setup
kubectl wait --for condition=Established --all CustomResourceDefinition --namespace=monitoring --timeout=300s
kubectl apply -f ground/k8s-1.27/prometheus-2.44.0/manifests

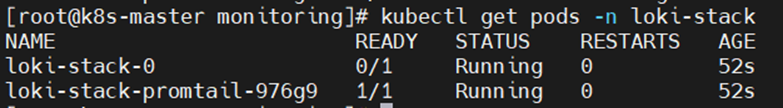

# [10-3] Loki-Stack 설치 (로컬 노트북 CPU 부족으로 주석처리)
# kubectl apply -f ground/k8s-1.27/loki-stack-2.6.1

echo '======== [10-4] 모니터링 외부 오픈 설정 (Grafana NodePort 30001) ========'
sleep 20
# Grafana 서비스를 NodePort 30001로 오픈하여 외부 접속 허용
kubectl patch svc grafana -n monitoring -p '{"spec": {"type": "NodePort", "ports": [{"port": 3000, "nodePort": 30001, "targetPort": 3000}]}}'

echo '========  custom : 모니터링 설치 완료 (Grafana: http://192.168.56.30:30001) ========'

SHELL
